Slow action servo point motor

This is our slow action servo point motor. It mounts below the board with an actuator wire which goes through the baseboard and into the tie bar of the point above. It is suitable for all 00 gauge Hornby and Peco points of all kinds as well as many other types. Also suitable for 0 gauge points.

Two different versions are available.

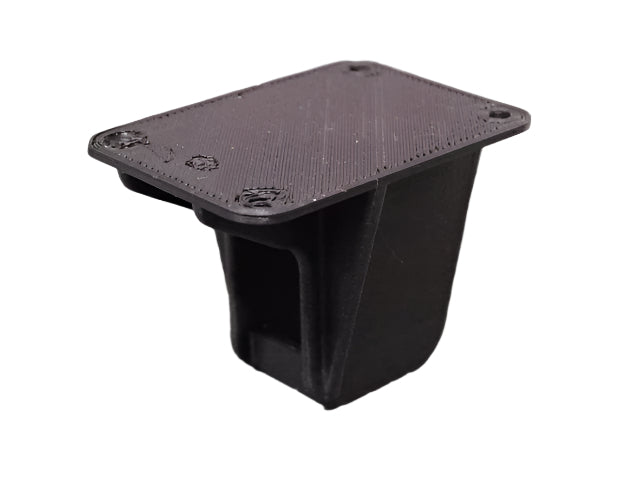

Option 1: Bracket only. This requires the addition of a standard SG-90 servo, control arm and actuator wire.

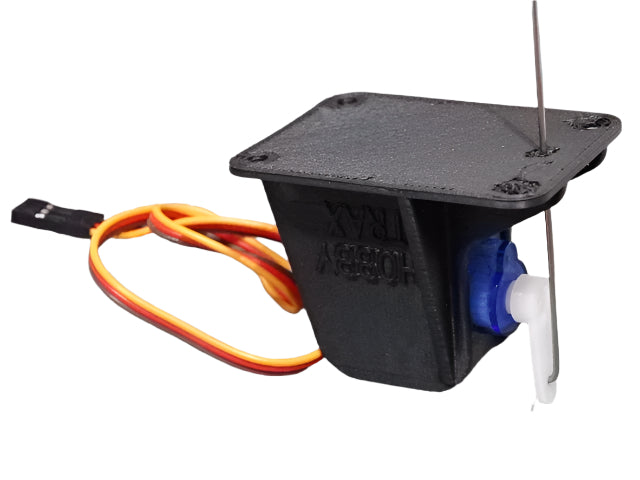

Option 2: Bracket, SG-90 servo, control arm and actuator wire.

You will require some method of controlling the servo in order to make this into a working point motor. We suggest the use of an Arduino microcontroller available from our sister company ARDUINOverse.com.

The design and fitment of these points was covered in the July issue of The Thistle Whistle.

Original bracket design by aleopardstail is licensed under the Creative Commons - Attribution license. Design modified by Hobby Trax.
